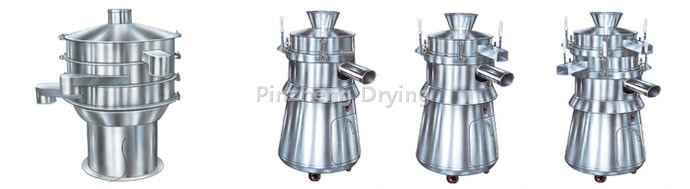

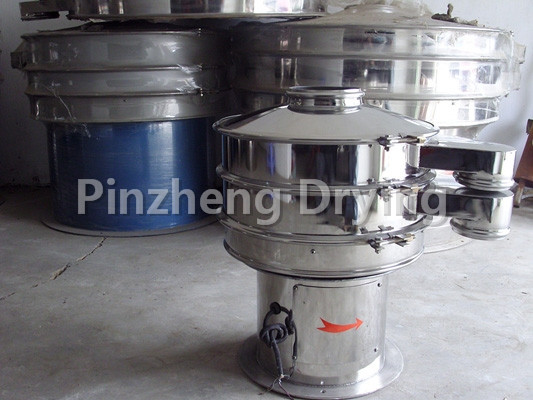

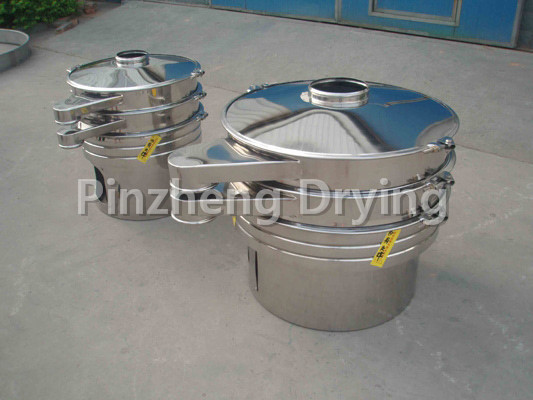

ZS series circular oscillating screen
ZS series circular oscillating screen is composed of hopper, oscillating chamber, coupling and motor. The oscillation chamber is composed of eccentric wheel, rubber software, main shaft, bearing, etc.
0519-88910291
Details



Summary
??This machine is composed of hopper, oscillation chamber, coupling and motor. The oscillation chamber is composed of eccentric wheel, rubber software, main shaft, bearing, etc. The adjustable eccentric weight is driven by the motor to reach the center line of the main shaft, which generates centrifugal force in the unbalanced state, changes the material strength and forms a track vortex in the screen. The amplitude of the weight adjuster can be adjusted according to different materials and screens. The whole machine has compact structure, small size, no dust, low noise, high quality, low energy consumption and convenient mobile maintenance.


Parameter


Model
ZS-350
ZS-515
ZS-650
ZS-800
ZS-1000
ZS-1500
Productive power(kg/h)
40-500
60-600
80-800
150-1200
300-2000
350-2800
Number of sieves
12-1200
12-200
12-200
12-200
5-325
5-325
Motor power(kw)
0.55
0.55
0.55
0.75
1.5
2.2
Spindle speed(rpm)
1380
1370
1370
1500
1500
1500
Overall dimension(mm)
540×540×1060
710×710×1290
880×880×1350
1000×1000×1000
1100×1100×1200
1600×1600×1200
Net weight(kg)
100
180
250
300
350
400
