Purpose
This machine is suitable for pharmaceutical, chemical, metallurgical, food, construction and other industries. It can also be used as a supporting equipment for the previous process of micro-mineralizer and micro-mineralizer.
Working principle

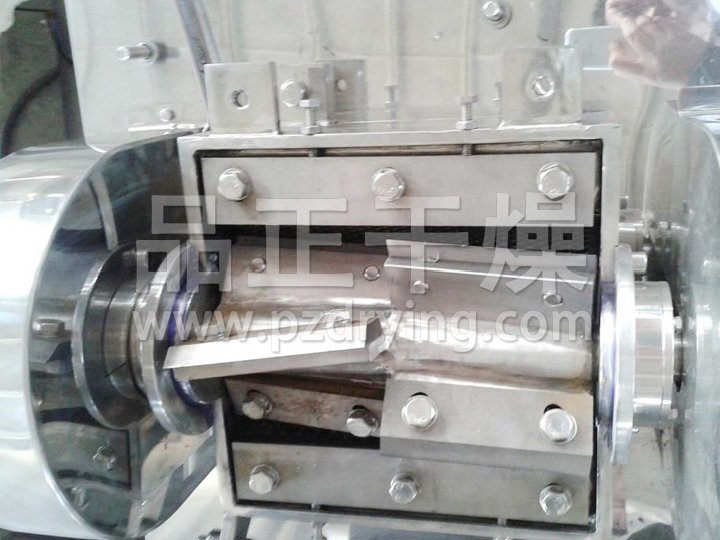

The material is sent into the crushing chamber by the feed hopper. Under the impact of the blade and the knife holder, the rotating knife and the fixed knife are sheared and crushed at the same time. Due to the effect of the rotating centrifugal force, the material automatically flows out from the outlet.
Model | CSJ-250 | CSJ-500 |
Feed size | ≤100 | ≤100 |
Discharge particles | 0.5-20 | 0.5-20 |
Spindle speed | 940 | 1000 |
Power | 4 | 11 |
Ｏutput | 50-300 | 80-800 |
Overall dimension | 860×650×1020 | 1120×1060×1050 |
