Working principle

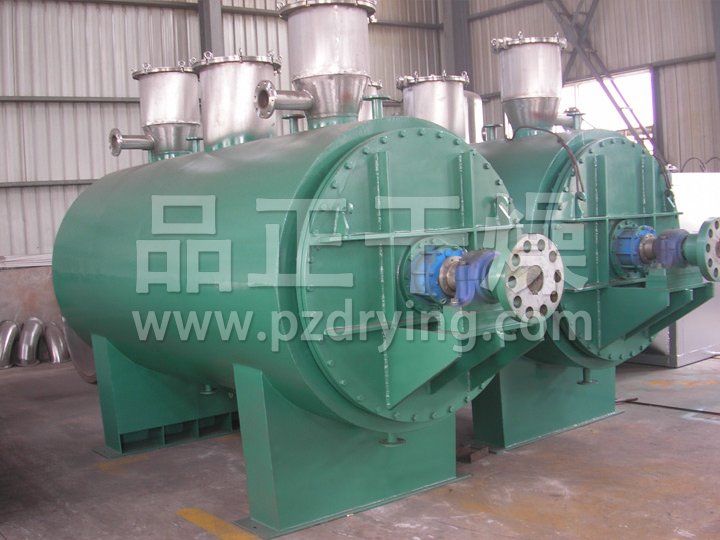

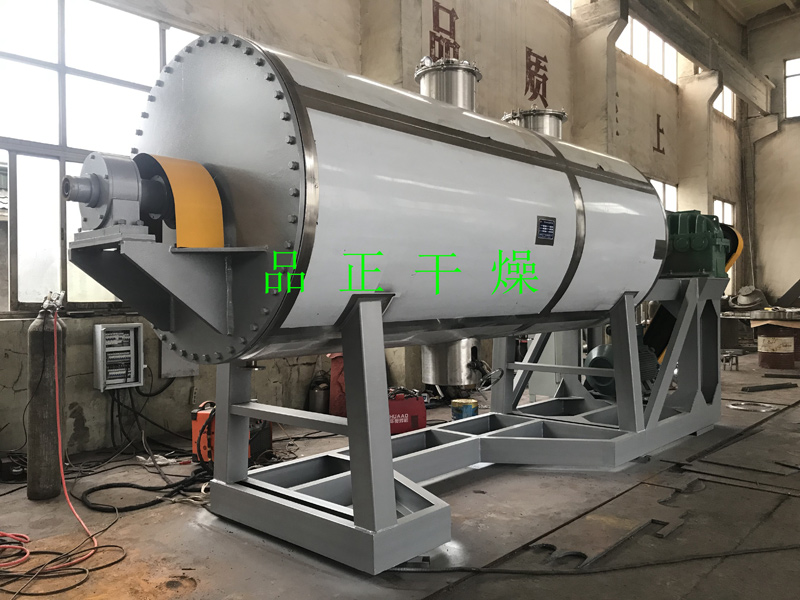

This machine is a new horizontal intermittent vacuum drying equipment. The wet material is evaporated by conduction, and the material on the hot surface is continuously removed by a scraper agitator, which forms a circulating flow in the container, and the water is pumped out by a vacuum pump after evaporation.
Performance characteristics
◎ This machine adopts large-area sandwich heating mode, with large heat transfer surface and high thermal efficiency.
◎ This machine is equipped with stirring to make the material form a continuous circulation state in the cylinder, further improving the uniformity of material heating.
◎ This machine is equipped with stirring, so that slurry, paste and paste materials can be dried smoothly.
Applicable materials
◎ The following materials are dried in the pharmaceutical, food, chemical and other industries:
◎ Suitable for paste, paste and powder materials;
◎ Heat sensitive materials requiring low temperature drying;
◎ Materials that are easy to oxidize, explosive, highly irritating and highly toxic;
◎ Materials requiring recovery of organic solvents.
| Item | Type | ||||||
| Name | Unit | ZPG-500 | ZPG-750 | ZPG-1000 | ZPG-1500 | ZPG-2000 | ZPG-3000 |
| Working volume | L | 300 | 450 | 600 | 900 | 1200 | 1800 |
| Heating area | m2 | 6 | 7.6 | 9.3 | 12.3 | 14.6 | 19.3 |
| Mixing speed | rpm | 6-30 stepless speed regulation | |||||
| Power | kw | 4 | 5.5 | 5.5 | 7.5 | 11 | 15 |
| Design pressure of interlayer (hot water) | MPa | ≤0.3 | |||||
| Vacuum degree in cylinder | MPa | -0.09～0.096 | |||||
Note: The water evaporation is related to the characteristics of the material and the temperature of the hot air inlet and outlet. As the product is constantly updated, the relevant parameters are subject to change without prior notice.
